FRJ45020-1306K6K0101
Download page

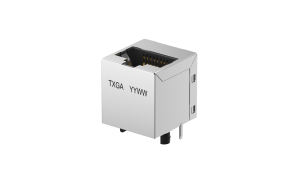

RJ45 Connector 180°Vertical, 1Port, 6μ", Black, Non-LED, 100Base-T
Product Number:
FRJ45020-1306K6K0101
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
8P8C
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black
Contact Type
Square pin
Electrical
Current(Max)
1A
Voltage(Max)
30V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100Base-T
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.15μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$1.688643
10+
$1.596167
50+
$1.411214
100+
$1.318738
500+
$1.133785
stock 385 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 100
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
