FRJ45051-2100K6K0200
Download page

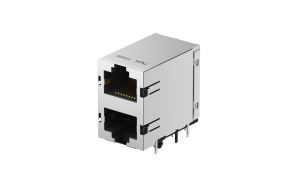

RJ45 Connector 90°Angle, 2Ports, Gold flash, Black, Non-LED,
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
2Ports
Number of Positions
16Circuits
Positions/Contacts
8P8C
LED Status Indicator
No
Orientation
Right angle(90°)
Colour
Black
Contact Type
Round pin
Electrical
Current(Max)
1.5A
Voltage(Max)
150V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.970882
10
$0.917004
50
$0.809247
100
$0.755369
500
$0.647612
1000
$0.517376
2500
$0.510240
5000
$0.503103
10000
$0.495967
25000
$0.488831
stock: 0 Estimated delivery date 2025-04-14
MPQ: 50
MOQ: 1000
