FRJ45084-1306K6K9102
Download page

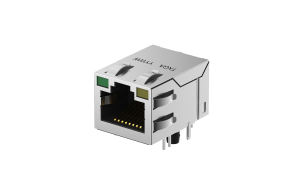

RJ45 Connector 90°Angle, 1Port, 6μ", Black, L:green+yellow, R:green+yellow, 1000B
Product Number:
FRJ45084-1306K6K9102
Status:
Active
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
10Circuits
Positions/Contacts
10P8C
LED Status Indicator
L:green+yellow,R:green+yellow
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
10/100/1000Base-T
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.15μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥18.239227
10+
¥17.243111
50+
¥15.250879
100+
¥14.254762
500+
¥12.262531
stock 263 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 100
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
