FSI20002-MD32S1018B

Download page

SIP Socket, 2mm, Male, Dual row, 32Circuits, Vertical(180°), Through hole, 0.025μm

Product Number：

FSI20002-MD32S1018B

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

SIP Socket

Style

Plug

Gender

Male

Pitch

2mm

Row Option

Dual row

Number of Positions

32Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

3A

Voltage(Max)

60V

Contact Resistance

10 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PPS

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FSI20001-FD32S1018B

SIP Socket, 2mm, Female, Dual row, 32Circuits, Vertical(180°), Through hole, 0.025μm

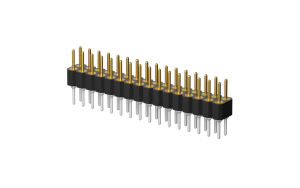

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.481886

10+

$1.400512

50+

$1.237765

100+

$1.156391

500+

$0.993644

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1000

MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
