FT20010-M2H
Download page

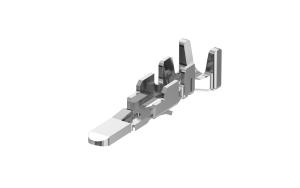

Wire to board terminal 2mm Male(Tin-Plated)
Product Number:
FT20010-M2H
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Terminal
Gender
Male
Pitch
2mm
Number of Positions
1Circuit
Orientation
Vertical(180°)
Applicable wires (AWG Max.)
24AWG
Electrical
Current(Max)
2A
Voltage(Max)
125V
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Riveting
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
100+
$0.054998
500+
$0.016779
1000+
$0.010347
17000+
$0.004847
119000+
$0.004723
stock 15210 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 17000
MOQ: 100

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
