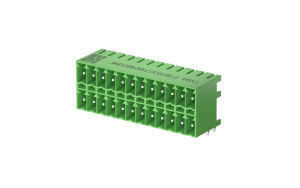

FTB35007-M24B2GNK Terminal block, 3.5mm, Socket, 24Circuits, Right angle(90°), Through hole, Green

Building Technology Cornerstone

中文 / English

Building Technology Cornerstone

中文 / English

你当前的浏览器版本过低或不支持。请升级或更换浏览器。推荐浏览器 Chrome Edge。

谷歌Chrome

Edge浏览器

FTB35007-M24B2GNK

Download page

Terminal block, 3.5mm, Socket, 24Circuits, Right angle(90°), Through hole, Green

Product Number：

FTB35007-M24B2GNK

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Terminal Block

Style

Socket

Gender

Male

Pitch

3.5mm

Number of Positions

24Circuits

Orientation

Right angle(90°)

Colour

Green

Electrical

Current(Max)

12A

Voltage(Max)

300V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

2500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Copper alloy

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FTB35009-F24S2GNB

Terminal block, 3.5mm, Plug, 24Circuits, Vertical(180°), Green

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$2.240269

20+

$1.890178

100+

$1.779005

500+

$1.680171

1000+

$1.591741

stock 10 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 50

MOQ： 600

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs

FTB35007-M24B2GNK

Terminal block, 3.5mm, Socket, 24Circuits, Right angle(90°), Through hole, Green

Order quantity：

MPQ： 50

MOQ： 600

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
