FTB35009-F14S2GNB

Download page

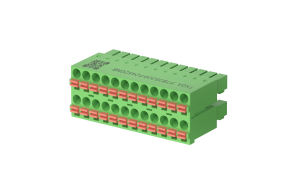

Terminal block, 3.5mm, Plug, 14Circuits, Vertical(180°), Green

Product Number：

FTB35009-F14S2GNB

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Terminal Block

Style

Plug

Gender

Female

Pitch

3.5mm

Number of Positions

14Circuits

Orientation

Vertical(180°)

Colour

Green

Electrical

Current(Max)

12A

Voltage(Max)

300V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

2500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Spring clamp

Material

Material-Contact

Copper alloy

Plating

Bright tin plated

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FTB35007-M14B2GNK

Terminal block, 3.5mm, Socket, 14Circuits, Right angle(90°), Through hole, Green

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$3.099894

20+

$2.913513

100+

$2.748056

500+

$2.600617

1000+

$2.483984

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 110

MOQ： 550

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
