FTB63501-F02B2GNB
Download page

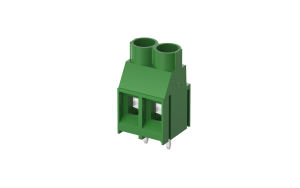

Terminal Block, 6.35mm, Plug, 2Circuits, Right angle(90°), Through hole, Green
Product Number:
FTB63501-F02B2GNB
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Terminal Block
Style
Plug
Gender
Female
Pitch
6.35mm
Number of Positions
2Circuits
Orientation
Right angle(90°)
Colour
Green
Electrical
Current(Max)
30A
Voltage(Max)
300V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
