FUS646-FSBBKM
Download page

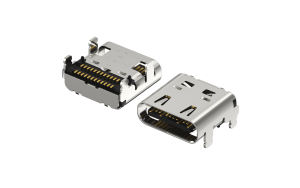

USB3.1 C-type 24Circuits, FEMALE, 90° Angle(SMT) (L8.17)
Product Number:
FUS646-FSBBKM
Status:
Active
Category
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Type C
Number of Positions
24Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
5V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
