FUS693-FSBBKM
Download page

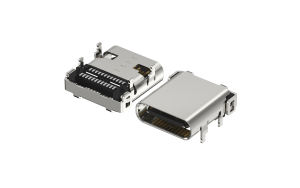

USB3.1 C-type 24Circuits, FEMALE, 90° Angle(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
3D Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Type C
Number of Positions
24Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
5V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.819108
10
$0.773652
50
$0.682741
100
$0.637285
500
$0.546373
1000
$0.436496
2500
$0.430476
5000
$0.424455
10000
$0.418434
25000
$0.412414
stock: 0 Estimated delivery date 2025-04-28
MPQ: 1000
MOQ: 10000
