FWF08001-S10S13W5M
Download page
Wafer 0.80mm, 10Circuits, 180° Vertical(SMT), Gold, LCP
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

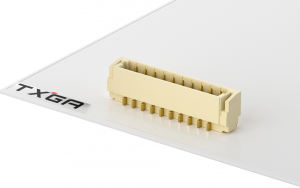

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.426158
10
$0.284105
50
$0.243519
100
$0.223226
500
$0.188727
1000
$0.137487
5000
$0.135457
10000
$0.133428
stock 1074 In stock
MPQ: 2000
MOQ: 2000
