FWF10001-S20B24W5M
Download page
Wafer 1mm 90°Angle 20Circuits (SMT)
Product Number:
FWF10001-S20B24W5M
Status:
Active
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

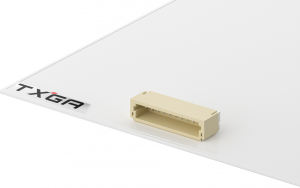

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥2.995516
10+
¥2.054068
50+
¥1.768781
100+
¥1.626137
500+
¥1.362247
stock 10 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1500
MOQ: 1500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
