FWF12514-S11B24W5M
Download page

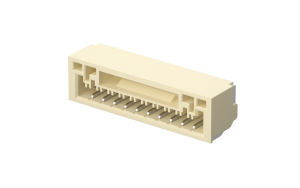

Wafer 1.25mm 90°Angle 11Circuits (SMT)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
11Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.277293
10
$0.184862
50
$0.158453
100
$0.145249
500
$0.122801
1000
$0.089460
5000
$0.088140
10000
$0.086819
stock 18 In stock
MPQ: 1000
MOQ: 1000
