FWF15001-S11S26W5B
Download page

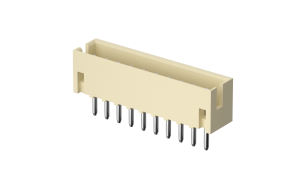

Wafer 1.5mm 180°Vertical 11Circuits (DIP)
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
11Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.086654
10
$0.067816
50
$0.057456
100
$0.054630
500
$0.044834
1000
$0.027315
5000
$0.026561
10000
$0.026185
stock: 0 Estimated delivery date 2025-04-21
MPQ: 1000
MOQ: 1000
