FWF15008-S04B24W5M
Download page
Wafer 1.5mm 90°Angle 4Circuits (SMT)
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.5mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
2.5A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

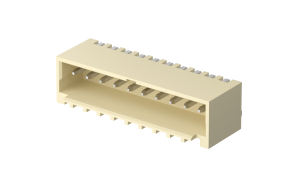

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.188191
10
$0.146614
50
$0.124731
100
$0.118166
500
$0.096284
1000
$0.064335
5000
$0.062584
10000
$0.061709
stock 994 In stock
MPQ: 1000
MOQ: 1000
