FWF20006-D04B22W5B
Download page

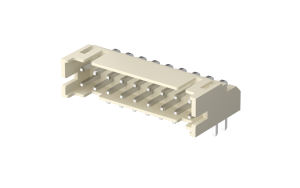

Wafer 2mm 90°Angle 4Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
4Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.035717
10
$0.033300
50
$0.028464
100
$0.026046
500
$0.021210
1000
$0.012649
2500
$0.012476
5000
$0.012304
10000
$0.012132
25000
$0.011960
stock 618 In stock
MPQ: 1000
MOQ: 1000
