FWF20018-S04B22W1B
Download page
Wafer 2mm 90°Angle 4Circuits (DIP) ZIF
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
2A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

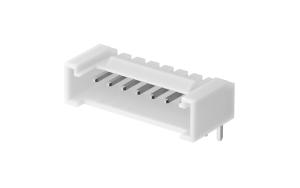

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.069255
10
$0.040564
50
$0.030275
100
$0.027999
500
$0.023052
1000
$0.014000
5000
$0.013802
10000
$0.013604
stock 330 In stock
MPQ: 1000
MOQ: 1000
