FWF25012-S07S22W1B
Download page
Wafer 2.5mm 180°Vertical 7Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

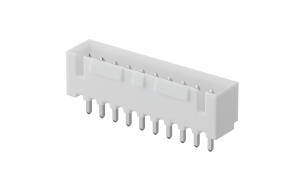

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.049963
10
$0.046581
50
$0.039817
100
$0.036435
500
$0.029670
1000
$0.017694
2500
$0.017453
5000
$0.017212
10000
$0.016971
25000
$0.016731
stock 1900 In stock
MPQ: 1000
MOQ: 1000
