FWF25028-S05S24W5M
Download page

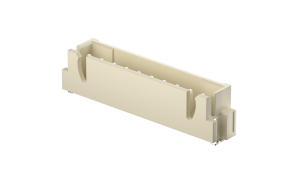

Wafer 2.5mm 180°Vertical 5Circuits (SMT)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.175544
10
$0.165130
50
$0.144302
100
$0.133888
500
$0.113060
1000
$0.084004
2500
$0.082853
5000
$0.081702
10000
$0.080551
25000
$0.079401
stock: 0 Estimated delivery date 2025-01-24
MPQ: 600
MOQ: 1800
