FWF25030-S03B25W5M
Download page

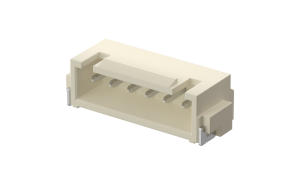

Wafer 2.5mm 90°Angle 3Circuits (SMT)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
3Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.127183
10
$0.119638
50
$0.104548
100
$0.097003
500
$0.081913
1000
$0.060861
2500
$0.060028
5000
$0.059194
10000
$0.058360
25000
$0.057526
stock 600 In stock
MPQ: 800
MOQ: 800
