FWF30001-D22S22K6K
Download page

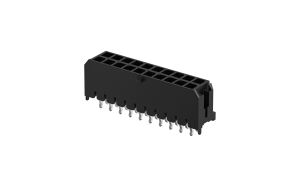

Wafer 3mm 180°Vertical 22Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
22Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.439023
10
$0.414055
50
$0.364121
100
$0.339153
500
$0.289219
1000
$0.225637
2500
$0.222535
5000
$0.219434
10000
$0.216332
25000
$0.213231
stock 381 In stock
MPQ: 500
MOQ: 1000
