FWF30002-D24B22K6B
Download page

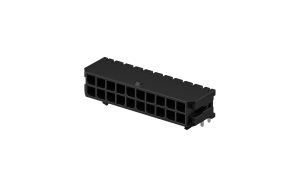

Wafer 3mm 90°Angle 24Circuits (DIP)
Product Number:
FWF30002-D24B22K6B
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.394195
10+
$0.371777
50+
$0.326941
100+
$0.304523
500+
$0.259687
stock 581 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 500
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
