FWF30005-S03B22K6B
Download page
Wafer 3mm 90°Angle 3Circuits(DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Single row
Number of Positions
3Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

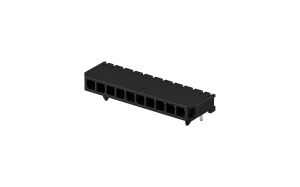

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.177343
10
$0.166822
50
$0.145780
100
$0.135260
500
$0.114218
1000
$0.084864
2500
$0.083702
5000
$0.082539
10000
$0.081377
25000
$0.080214
stock 962 In stock
MPQ: 1000
MOQ: 1000
