FWF30016-D10S23K6M
Download page
Wafer 3mm 180°Vertical 10Circuits (SMT)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

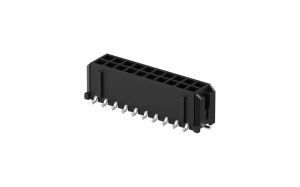

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.031070
10
$0.973852
50
$0.859415
100
$0.802196
500
$0.687759
1000
$0.549449
2500
$0.541871
5000
$0.534292
10000
$0.526714
25000
$0.519135
stock: 0 Estimated delivery date 2025-04-18
MPQ: 300
MOQ: 900
