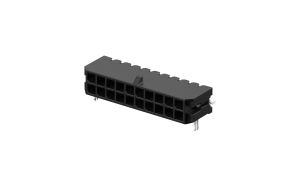

FWF30019-D18B23K6M
Download page
Wafer 3mm 90°Angle 18Circuits (SMT)
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3mm
Row Option
Dual row
Number of Positions
18Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
5A
Voltage(Max)
250V
Contact Resistance
10 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.369871
10
$1.294649
50
$1.144204
100
$1.068981
500
$0.918535
1000
$0.739434
2500
$0.729199
5000
$0.718965
10000
$0.708731
25000
$0.698496
stock 1000 In stock
MPQ: 200
MOQ: 1000
