FWF39601-S07S22W1B-E6
Download page
Wafer 3.96mm 180°Vertical 7Circuits (DIP) (Canceled No. 6 Circuits)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
3.96mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED

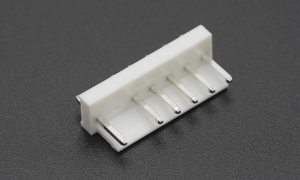

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.142855
10
$0.114905
50
$0.097825
100
$0.093166
500
$0.077639
1000
$0.055589
5000
$0.054347
10000
$0.053726
stock 940 In stock
MPQ: 1000
MOQ: 1000
