FWF42002-D14S22TK
Download page

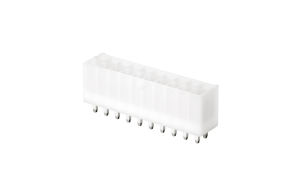

Wafer 4.2mm 180°Vertical 14Circuits (DIP)
Product Number:
FWF42002-D14S22TK
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
4.2mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Clear
Electrical
Current(Max)
9A
Voltage(Max)
250V
Contact Resistance
15 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-2
Packaging
Packaging
Tray
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.349439
10+
$0.329566
50+
$0.289821
100+
$0.269948
500+
$0.230203
stock 1216 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 200
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
