FWF42004-D18B22TK
Download page

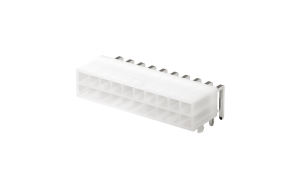

Wafer 4.2mm 90°Angle 18Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
4.2mm
Row Option
Dual row
Number of Positions
18Circuits
Orientation
Right angle(90°)
Colour
Clear
Electrical
Current(Max)
9A
Voltage(Max)
250V
Contact Resistance
15 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-2
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.424794
10
$0.400636
50
$0.352319
100
$0.328161
500
$0.279845
1000
$0.218324
2500
$0.215323
5000
$0.212322
10000
$0.209321
25000
$0.206320
stock 216 In stock
MPQ: 200
MOQ: 1000
