1mm wire end plug rubber shell (halogen free) products

TXGA updated 1mm wire end plug rubber shell (halogen free) products, sales drawings, prices and other information, the following is the type of wire to the board connector product detailed parameters:

Type: 1mm rubber shell of wire-end plug (click red font to understand product price or purchase)

RoHS:

Delivery cycle: 2 weeks

Line end plug rubber shell 1mm product type

Type: wire end plug rubber shell

The number: 2-20

Spacing: 1.0 mm

Socket: FWF10001,FWF10002

Supporting terminal: FT10001

Operating temperature range: -25 ° C~+85 ° C

Wire end plug rubber shell 1mm product material

Material - resin: PA66 ul94v-0

Picture of 1mm wire end plug rubber shell (halogen free)

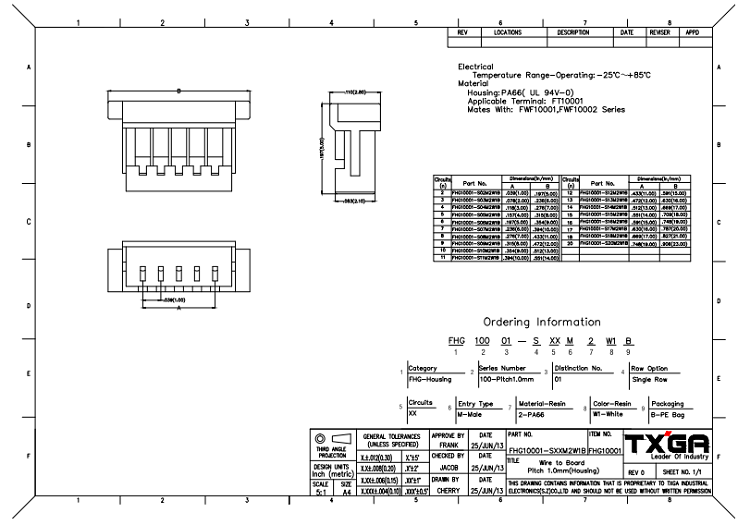

Sales drawings of 1mm wire end plug rubber shell (halogen free)

Cable to board connector choice TXGA, 14 years focus on all kinds of connectors, advanced technology, strong strength, set connector research and development, production, sales, service in one. Quality is guaranteed, save time and worry. Please continue to pay attention to TXGA official website, convenient follow-up to learn more about the wire end plug gel case 0.8mm product content.
