1mm tin-plated wire harness terminal products

TXGA updated 1mm tin-plated wire harness terminal products, sales drawings, price and other information, the following is the type of wire to board connector products detailed parameters introduction:

Type: wire harness terminal 1mm female (tin plating) (click on red font to know product price or purchase)

Number: FT10001

RoHS:

Delivery cycle: 2 weeks

Type of 1mm tin-plated wire harness terminal

Type: wire harness terminal 1mm female (tin plated)

Adaptor plug: FHG10001 series

Line range: 32AWG~28AWG

1mm tin-plated wire harness terminal product material

Material - metal: phosphorous bronze

Material - contact plating: tin

Material - terminal plating: tin

Picture of 1mm tin-plated wire harness terminal

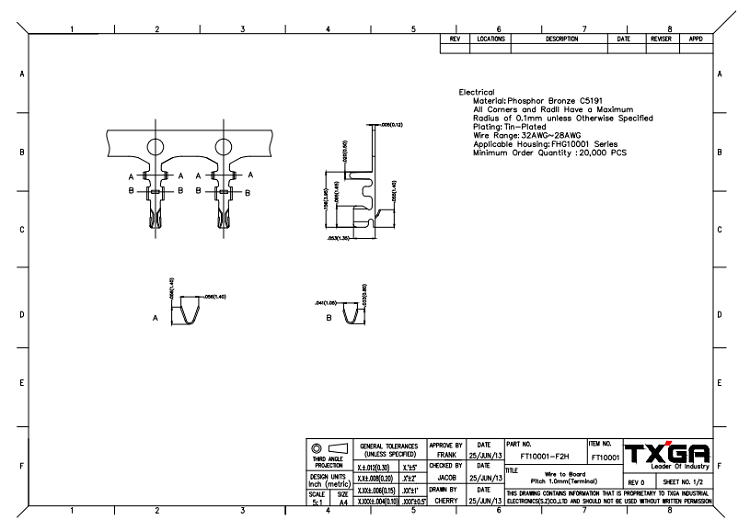

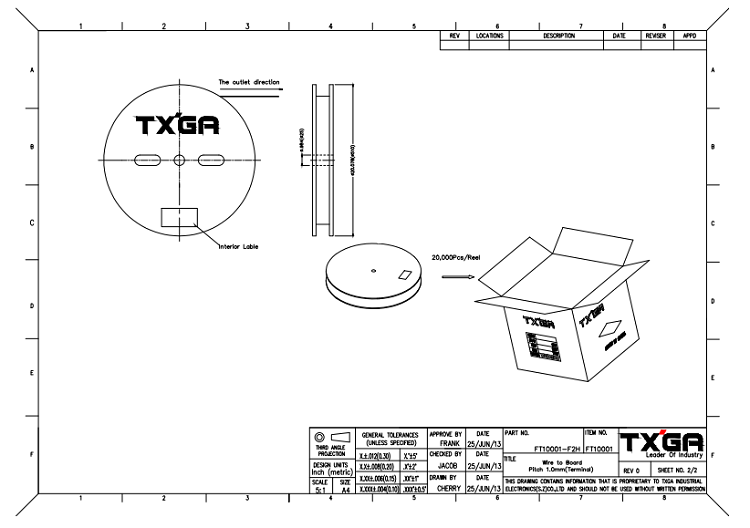

Sales drawings of 1mm tin-plated wire harness terminal products



Cable to board connector choice TXGA, 14 years focus on all kinds of connectors, advanced technology, strong strength, set connector research and development, production, sales, service in one. Quality is guaranteed, save time and worry. Please continue to pay attention to TXGA official website, convenient follow-up to learn more about 1mm tin wire harness terminal product content.
