Performance and flexibility are equally important - TXGA single pair Ethernet (SPE) connectors have a volume of only 20% of RJ45

The external dimensions of TXGA single pair Ethernet (SPE) connectors are only 20% of standard RJ45, which can greatly save layout space while ensuring efficient transmission of data and power, providing a more flexible and concise interconnection solution for industrial field equipment.

1、 Performance parameters
Current - maximum 4A
Voltage - Maximum 72V
Contact resistance 10 m Ω Max
Insulation resistance 1000 M Ω Min
Withstand voltage 1500V AC r.m.s

2、 Product advantages
Small size: Compared with standard RJ45 connectors, the product has reduced its size to 20%, providing more possibilities for equipment layout and installation.
Anti interference: Using double shielded cables can effectively reduce signal interference and ensure the stability and accuracy of data transmission.
High power supply: With a power supply capacity of 50W, it can meet the power needs of various devices.
Strong durability: supports 1000 insertion and removal cycles, reducing user maintenance costs.
High transmission rate: achieve 1Gbit/s high-speed transmission within a distance of 40 meters; Maintain stable transmission of 10Mbps within a distance of 1000 meters.

3、 Multiple specifications and models

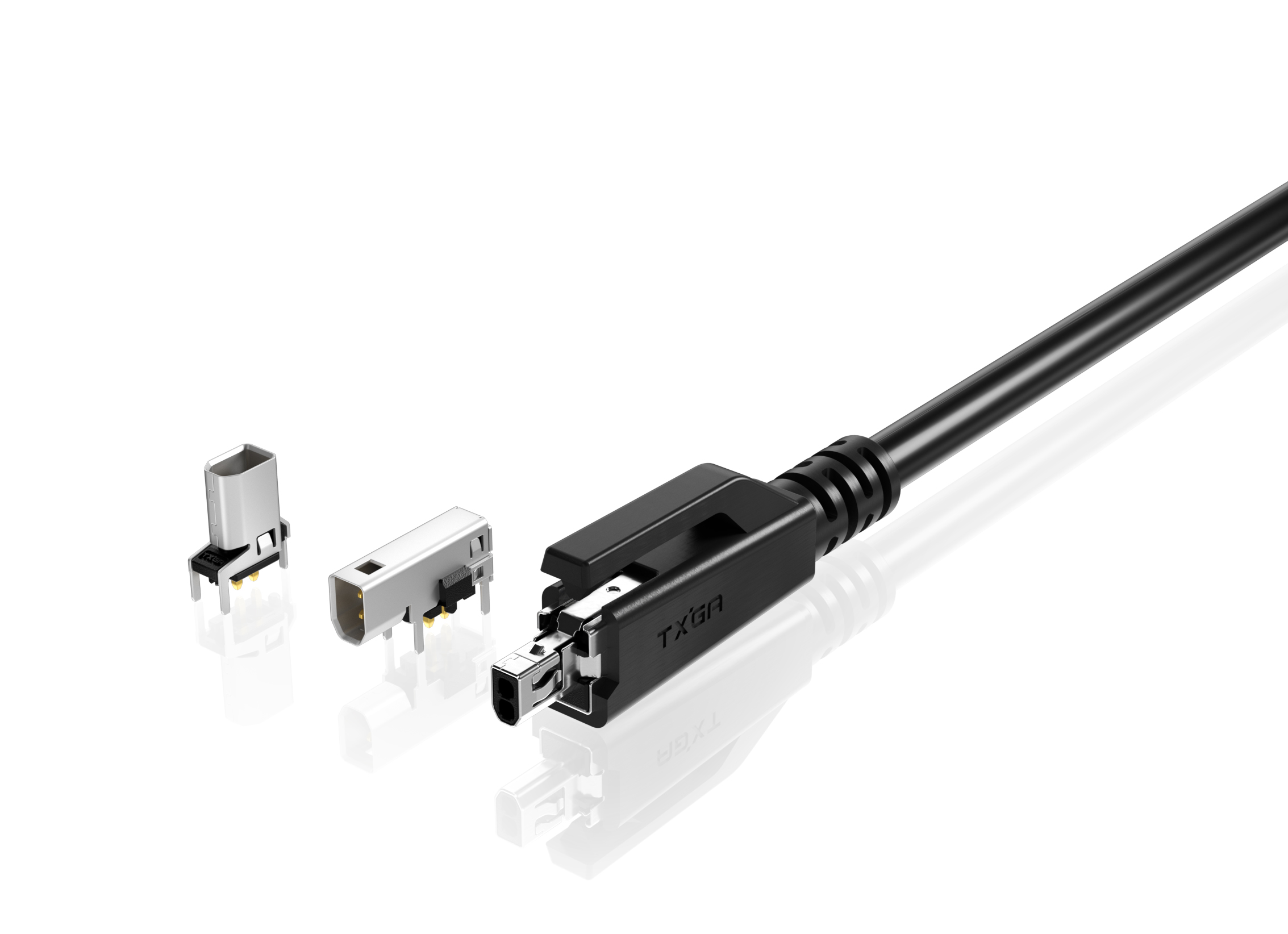

Socket type: Provides 90 ° and 180 ° PCB board sockets to meet the installation needs of different devices.
Plug type: Designed with a wired plug, convenient, fast, and easy to use.

TXGA single pair Ethernet (SPE) connectors are widely used in industries such as industrial IoT, robotics, building construction, and rail transit.
