TXGA M5 circular connector - an ideal choice for flexible interconnection of industrial miniaturized equipment

The TXGA M5 series circular connector has an external thread diameter of only 5 millimeters and a compact structure, fully demonstrating the advantage of small size and providing a flexible interconnect solution for miniaturized devices. The connector adopts advanced riveting wiring technology to ensure the stability and reliability of the cable and terminal connection. In addition, with the multi-layer sealing structure design, the safe operation water depth can reach 9 meters, fully meeting the waterproof performance requirements of underwater equipment.

The TXGA M5 series circular connector strictly follows the design specifications of DIN EN 61076-2-105-2009, providing strong support for flexible and reliable electrical interconnection of miniaturized devices in harsh environments.

performance parameter
Maximum current: 1A
Maximum voltage: 60V
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ

Product advantages
Can withstand up to 100 insertions and removals
Protection level up to IP68, safe operation water depth up to 9 meters
Compliant with DIN EN 61076-2-105-2009 design specifications
Supports a wide range of operating environments from -40 º C to+105 º C

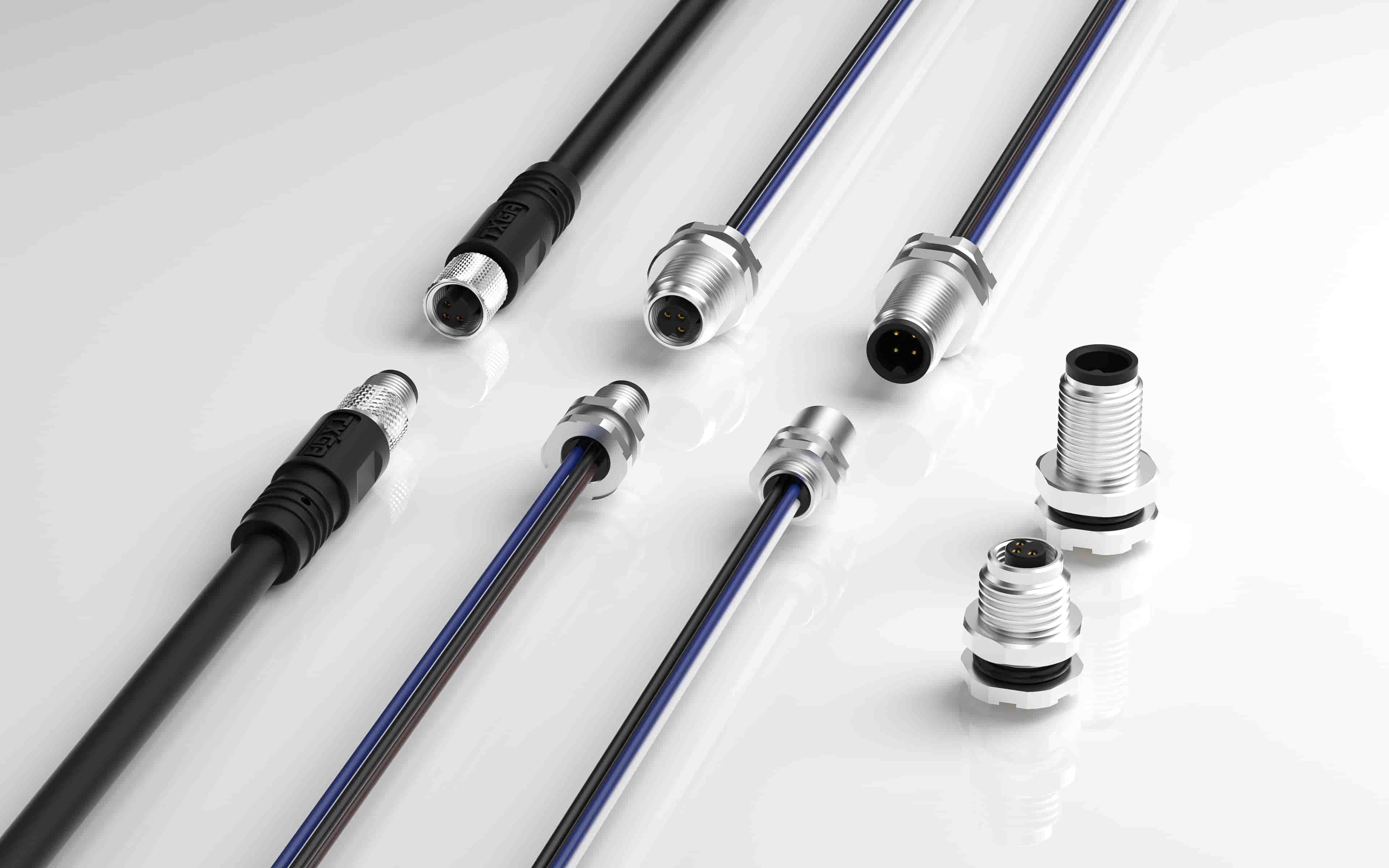

We offer multiple options such as 3-core and 4-core, as well as various types of plugs and sockets, including male cables, female cables, and double ended male straight cables, to meet the needs of different application scenarios.
