TXGA board to board connector meets the efficient data transmission needs of mobile phone camera modules in limited spaces

The mobile phone camera module consists of core components such as image sensors, lenses, optical components, and image processing chips. With the continuous development of smartphones, slimness and multi camera configuration have become the mainstream trends in the development of smartphone camera modules, which puts more stringent requirements on data transmission components.

As a channel for transmitting data in mobile phone camera modules, board to board connectors are also undergoing technological innovation in the face of increasingly compact internal space designs, developing towards small spacing, low height, and higher contact density to meet the ultimate compression requirements of the internal structure of smartphones.

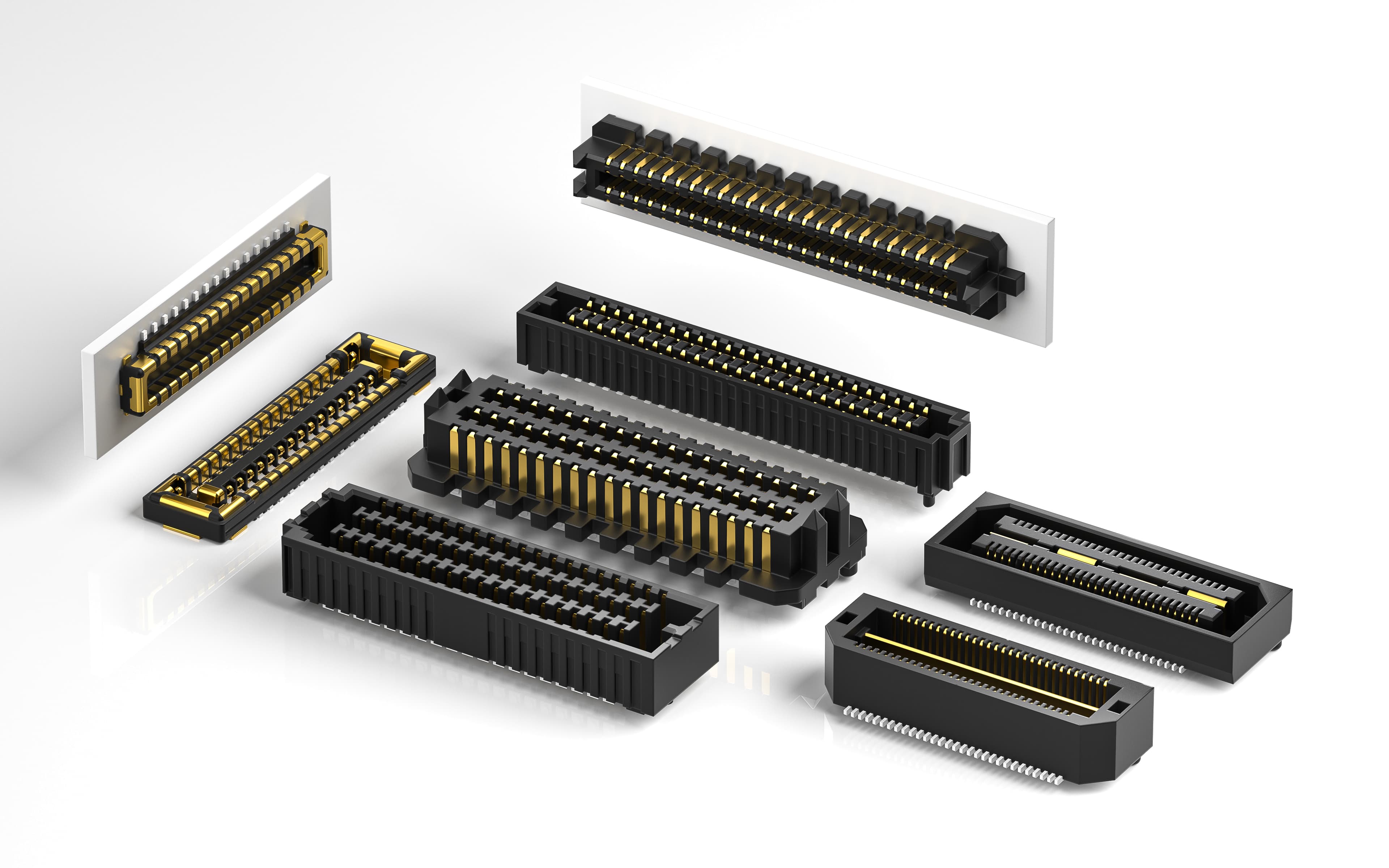

The contact spacing of TXGA board to board connectors is fine to 0.4 millimeters, and the height of the male and female head combination is only 0.8 millimeters, which can meet the needs of efficient data transmission for mobile phone camera modules in limited spaces. The TXGA board to board connector also adopts a circular groove dual contact structure design, making the contact layout more compact, effectively saving equipment space, and greatly enhancing the structural stability of the connector. Even in the event of accidental dropping of the phone, the connector can still be ensured to be intact, providing a stable and reliable guarantee for the data transmission of the phone camera module.
