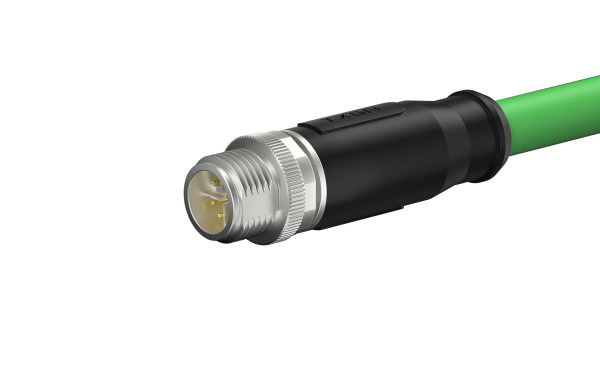

TXGA M12 circular connector - X-code: providing efficient and stable data transmission solutions for Ethernet and fieldbus networks

The TXGA M12 circular connector X-code series is a connector designed specifically for high-speed data transmission. The data transmission rate is up to 10Gbps, with a protection level of IP67, which can effectively shield EMI/RFI interference and meet the strict requirements of Ethernet and fieldbus networks for data transmission efficiency and stability.

Product Features
High speed data transmission
The M12 circular connector-X encoding series has a data transmission rate of up to 10Gbps and supports the CAT6A standard. It can perfectly adapt to Category 6A Ethernet cables, bringing users a high-speed and smooth data transmission experience and meeting the needs of various high-speed data interaction scenarios.

shielding property
The product adopts an alloy shielding layer design, which can comprehensively shield EMI/RFI interference. Ensuring that the connector can still achieve optimal data transmission speed in complex electromagnetic environments.

Protective properties
The product is equipped with multiple layers of sealing rings inside, with a protection level of IP67, which can work stably in harsh environments such as humidity, dust, and splashing water.

Product specifications
8-core
Compliant with lEC 61076-2-109 standard
Compliant with 2011/65/EU ROHS requirements

application area
-PLC
-Industrial Machinery
-Robotics Technology
-Servo drive
-Industrial Ethernet Switch
