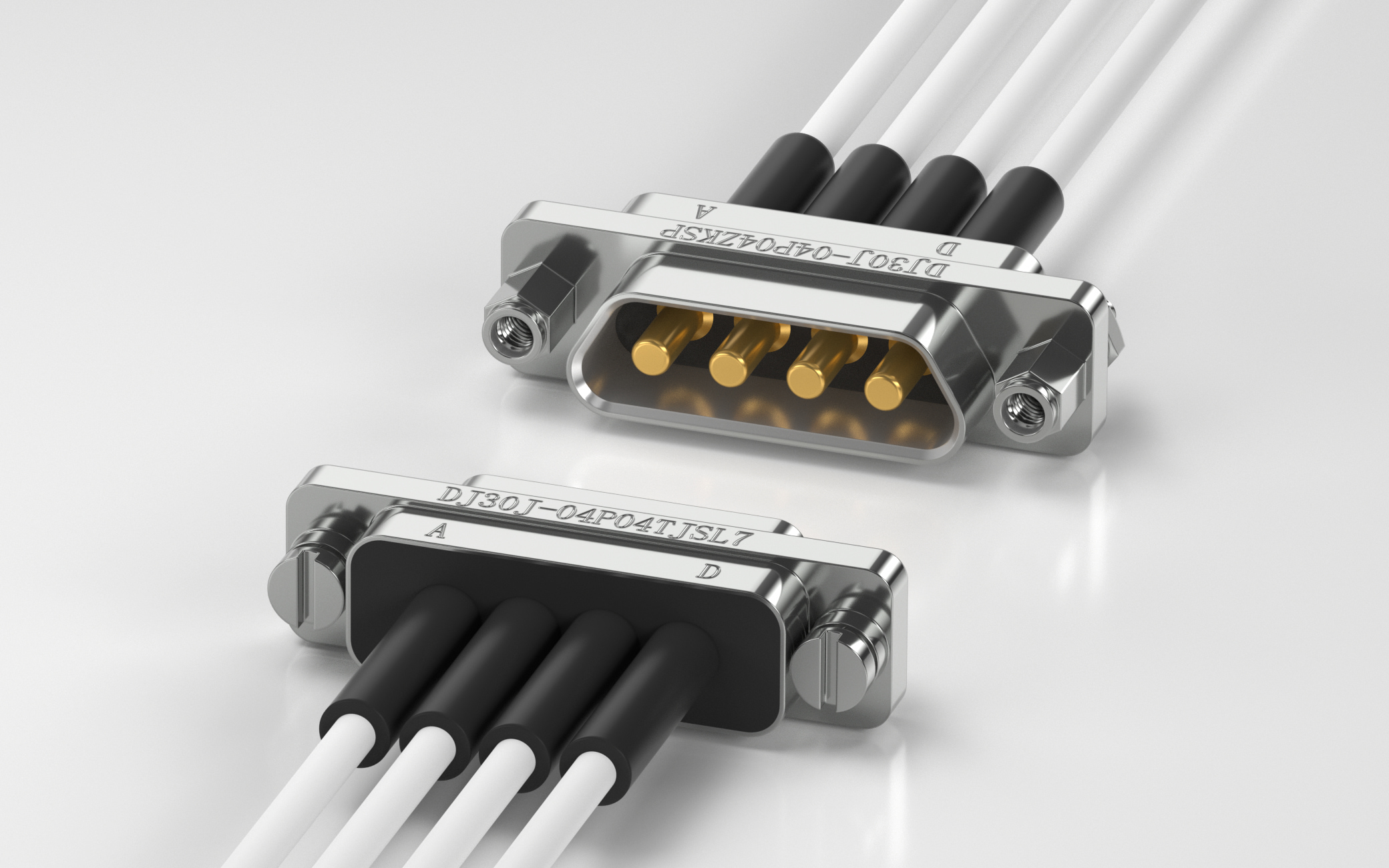

The TXGA high current micro D-shaped connector adopts a 4P4 contact layout design, which can support 20A high current transmission and fully meet the needs of electrical equipment for high-power transmission. The male and female sockets adopt a screw locking structure to maintain the stability and safety of the equipment connection. The contact spacing is 4.1mm, with a micro volume that facilitates flexible arrangement of compact devices.
Product advantages
Efficient transmission
The connector contacts adopt a 0.5 micron gold plating process, effectively reducing contact resistance, and combined with a 4P4 contact layout, support 20A high current transmission, meeting the needs of electrical equipment for high-power and efficient transmission.
Stable Interconnection
The product adopts a screw locking structure on both sides, and after the male and female seats are locked together, a reliable mechanical connection can be formed, effectively avoiding the connection interruption of the connector due to environmental vibration or accidental pulling, ensuring the stability and safety of the equipment connection.
Micro volume
The contact spacing of the product is only 4.1mm, and the micro volume is convenient and flexible for layout, making it more suitable for high-density and miniaturized electrical equipment.
Product Parameters
Number of digits: 4
Contact layout: 4P4
Current (maximum): 20A
Voltage (maximum): 500V
Contact resistance: 10 m Ω Max
Voltage endurance: 800V AC r.m.s
Working temperature range: -55 º C~+125 º C
Application Industry
Server power module
maglev train
AGV/AMR logistics robot
servo motor
