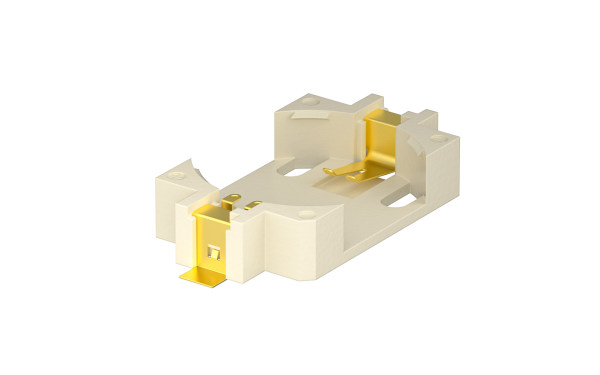

TXGA button cell socket provides a stable and flexible battery interconnection solution for portable instruments

In the current era of continuous upgrading and replacement of electronic devices, the market has put forward more stringent requirements for high integration, high reliability, and high security of electronic products. The TXGA button cell socket has excellent corrosion resistance and impact resistance. After surface mounting, the product height is only 4.4mm, which greatly saves installation space and meets the pursuit of miniaturization and lightweight for portable instruments. It also provides a solid and flexible battery connection guarantee for various portable micro instruments.

Product advantages
Suitable for CR1220 batteries.
Adopting gold-plated contacts, it has excellent oxidation and corrosion resistance, extending its service life.
The main body is made of PPS engineering plastic to further enhance its corrosion resistance and impact resistance.
The height of 4.4mm after installation effectively saves installation space.
It can operate stably within a wide temperature range of -55 º C to+105 º C and adapt to various extreme environments.

performance parameters
Voltage - Maximum 3V
Contact resistance 30 m Ω Max
Insulation resistance 1000 M Ω Min
Withstand voltage 500V AC r.m.s

Application Industry
motherboard
electronic watch
pacemaker
Electronic hearing aids
