TXGA SATA storage module socket: for stable interconnection between spectrum analyzer, hard disk, and optical drive

In the field of radio frequency and microwave, spectrum analyzer is commonly used as a testing instrument. By using a spectrum analyzer for testing, important parameters such as signal frequency, signal power, signal bandwidth, and spurious performance can be accurately obtained. Facilitating real-time monitoring of device interference by users and effectively reducing the probability of communication failures. At present, spectrum analyzers are widely used in wireless device testing, communication testing, electromagnetic radiation monitoring and other fields.

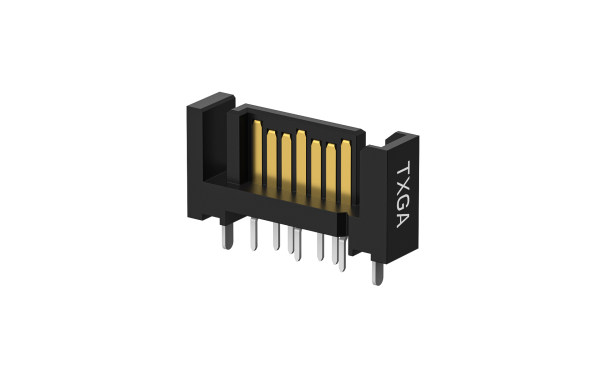

The SATA storage module socket provided by TXGA for spectrum analyzers has a unique design and excellent performance. The product socket adopts a long and short pin design, allowing users to connect and disconnect storage devices during system operation, improving the convenience of use. The installation method of product through-hole welding can ensure the stability and reliability of connector installation.

The main body of the SATA storage module socket is made of LCP polymer material, which has excellent environmental adaptability. It can operate stably in a working environment of -40 º C to+85 º C, even under harsh conditions such as high temperature, high pressure, salt spray, etc., and still maintain stable transmission performance, providing a reliable interconnection solution between spectrum analyzers and hard drives and optical drives.
