TXGA D-Shaped Connector meets the anti-interference application requirements of medical equipment

A filter is a filtering circuit composed of capacitors, inductors, and resistors. Its core function is to accurately screen signals, allowing only signals of specific frequencies to pass through, while effectively filtering out unwanted frequency signals, solving the problem of signal interference between different frequency bands and communication systems.

For medical equipment, the interference of electromagnetic waves on equipment signals can seriously affect the accuracy of doctors' diagnostic results and endanger the safety of patients' lives. Therefore, large medical equipment usually needs to be equipped with medical filters to suppress electromagnetic interference and ensure that medical equipment is always in precise, safe, and good working condition.

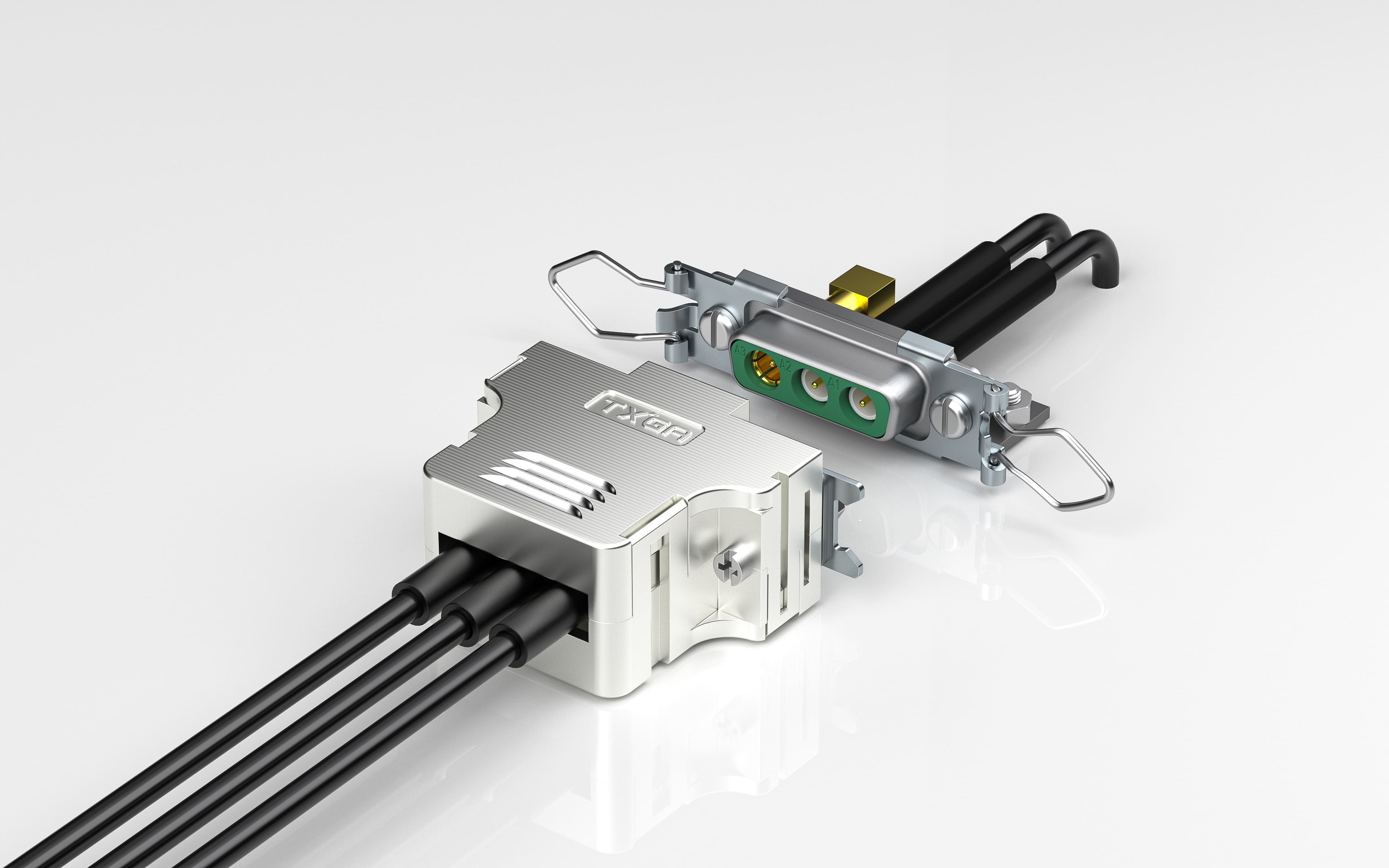

In response to the special requirements of medical filters, the D-Shaped Connector developed and produced by TXGA adopts an iron shell design, which can effectively reduce electromagnetic interference and provide stability and robustness for the overall structure. The product has a contact resistance of 25 m Ω Max and an insulation resistance of 1000 M Ω Min, and can operate in environments ranging from -55 º C to 105 º C, meeting safety requirements in medical applications. The product complies with the EU RoHS directive and REACH regulations.
