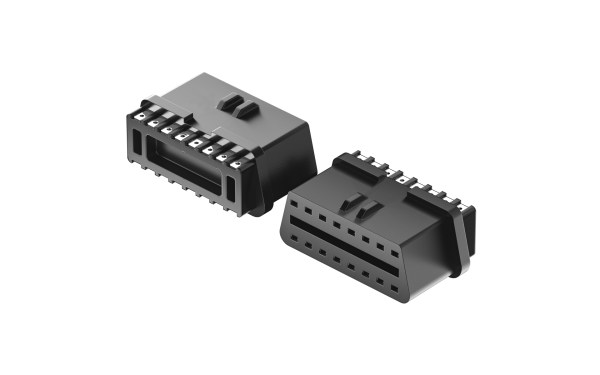

TXGA OBD connector (in car automatic diagnostic system connector) follows the SAE J1978 automotive diagnostic protocol specification, providing male plugs, female plugs, wired male plugs, wired female plugs, and solder board male plugs. Users can choose according to the application needs of different vehicle models. 12V passenger car connectors or 24V heavy-duty truck connectors can be adapted to meet various usage requirements in various scenarios.
The product adopts a spring clip structure, and when inserted, the spring clip will tightly buckle with the protruding structure of the OBD female seat, making the connector stably connected after insertion, effectively preventing loosening caused by accidental collision or other factors, and ensuring the continuity of data transmission. The material flame retardant rating of the product reaches UL94V-0, effectively reducing the risk of fire and providing reliable guarantee for the safe operation of vehicles.
The TXGA OBD connector is designed with an assembly slot structure. The housing of OBD devices can be directly fastened into the slot, achieving tight fixation and improving the efficiency of user assembly. TXGA OBD connectors are mainly used in OBD terminal devices and OBD testing equipment, providing strong support for the testing and diagnostic work in the automotive industry.
Product Parameters
Current: 2A-5A
Voltage (maximum): 250V
Contact resistance: 20 m Ω Max
Insulation resistance: 100 M Ω Min
Flame retardant rating: UL94 V-0
Voltage endurance: 1500V AC r.m.s
