TXGA SIP socket provides a safe and reliable interconnection solution for electronic devices in strong vibration environments

The application scope of modern electronic devices is becoming increasingly broad, which also means that they need to face more complex application environments. To ensure stable operation of equipment in vibration and impact environments, reliable electronic circuit connectors have become crucial.

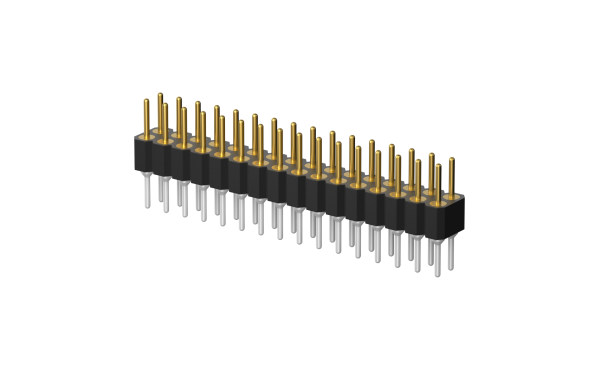

The TXGA SIP socket adopts a claw spring structure design for the female socket. When the male socket pin is inserted, the multiple claw leaves of the claw spring will undergo elastic deformation, tightly wrapping around the pin, thus establishing a stable connection. Significantly improve the stability of the connection between the socket and the pin, ensuring long-lasting and reliable electrical contact even in strong vibration environments.

The SIP socket can carry a maximum current of 3.00A per contact, with a maximum voltage of 60V, a contact resistance as low as 20m Ω Max, an insulation resistance as high as 1000M Ω Min, and a withstand voltage of 100V AC r.m.s. It can operate normally within a wide temperature range of -40 º C to+105 º C, fully meeting the needs of various electronic devices in different application scenarios.

The product is gold-plated with contacts, which has excellent oxidation resistance and corrosion resistance, and can effectively resist external environmental erosion. At the same time, the plug-in life is over 500 times, reducing maintenance costs.
