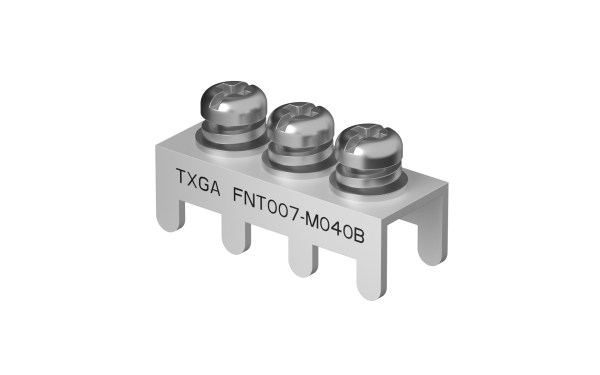

Nut terminal is a connector that allows wires to be easily connected to a PCB board, usually used in conjunction with screws and wire connectors. After inserting the nut terminal into the PCB board and completing the welding fixation, simply align the circular hole at the top of the wiring nose with the circular hole on the nut terminal, and tighten it with screws to complete the installation. During maintenance, operators only need to loosen the screws to easily replace the wiring nose. This product greatly enhances the flexibility of PCB wiring, making maintenance work more efficient and convenient.
In addition, screw fixation can also bring high contact pressure. In a vibrating environment, it can effectively prevent the loosening of the wiring nose and nut terminals, providing a stable and reliable connection guarantee for the PCB board, ensuring that the circuit can operate normally under various complex working conditions.
performance parameters
Current (maximum) 120A
Wire pressing screw hole M4
Screw torque 13 Ibf in
The height on the board is 17mm
Product advantages
Main body coated with mist tin
The gasket is made of stainless steel material, with high strength and corrosion resistance
Can be used in conjunction with square washer screws and round washer screws
The product can operate in an environment of -40 º C~+120 º C
Industry Applications
The nut terminals developed and produced by TXGA have been widely used in telecommunications, electrical, computer, network communication, transportation, industrial electronics, medical electronics and other fields.
