F00MPC-P04SA200-01

Download page

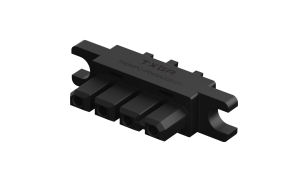

Charging pile module power connector, Plug, 4Circuits, 180°Vertical, AC, 20KW

Product Number：

F00MPC-P04SA200-01

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Charging Pile Module Power Connector

Style

Plug

Gender

Female

Number of Positions

4Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

45A

Voltage(Max)

600V

Contact Resistance

1 mΩ Max

Insulation Resistance

3000 MΩ Min

Withstanding Voltage

3000V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Current Type

AC

Mechanical

Mounting Style

N/A

Material

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Terminal

F0CLCT-03004120-01

Crown lamella socket, ∅3, Silver plated, 3μm

Receptacle

F00MPC-S04RA200-01

Charging pile module power connector, Socket, 4Circuits, 90°Angle, AC, 20KW

Assemblies

FSM040-10100200-01

Screw, Steel, Nickel plated, M4x0.7 L15

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$2.516865

10+

$2.315898

50+

$2.009664

100+

$1.885256

500+

$1.646010
