F0CLCT-03004120-01

Download page

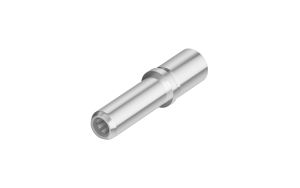

Crown lamella socket, ∅3, Silver plated, 3μm

Product Number：

F0CLCT-03004120-01

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Charging Pile Module Power Connector

Style

Terminal

Gender

Female

Number of Positions

1Circuit

Orientation

Vertical(180°)

Colour

Silver

Electrical

Current(Max)

45A

Voltage(Max)

600V

Contact Resistance

1 mΩ Max

Insulation Resistance

Withstanding Voltage

3000V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Current Type

AC

Mechanical

Mounting Style

Riveting

Material

Plating

Silver plated

Plating Thickness

3μm

Material-Resin

No

Flammability Rating

UL94 V-0

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

F00MPC-P04SA200-01

Charging pile module power connector, Plug, 4Circuits, 180°Vertical, AC, 20KW

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.732218

10+

$1.637356

50+

$1.447630

100+

$1.352768

500+

$1.163042

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1

MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
