Where you are： TXGA → Products → M8 Circular Connector → FCA0M8-PXXXXXX0-00 → FCA0M8-PA060200-00

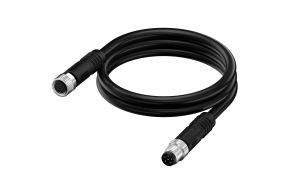

FCA0M8-PA060200-00
Download page
M8X1.0 A Coded 6pin, female straight to male straight , cable length L=2m
Product System：
M8 Circular Connector
Series：
M8X1.0 female straight to male straight , A、B Coded, cable length L=2m
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FCA0M8-PXXXXXX0-00.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Number of Positions
6Circuits
Cable Length(M)
L=2M
Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Compatible Parts
Receptacle
F001M8-SA06SRD1-00
Front fastened M8X1.0 Male Socket , A-Coded , 6Circuits , Pin , 90° Vertical , Through Hole, with shield
F001M8-SA06SSD0-00
Front fastened M8X1.0 Male Socket , A-Coded , 6Circuits , 180° Vertical , Through Hole, without shield
F001M8-SA06SSD1-00
Front fastened M8X1.0 Male Socket , A-Coded , 6Circuits , Pin , 180° Vertical , Through Hole, with shield
F001M8-SA06SSP200-00
M8X1.0 front fastened M8X1.0 male socket, 【with section】 ACoded 6pin, with lize L=200mm, free end
F002M8-SA06PRD1-00
Front fastened M10X0.75 female Socket , A-Coded , 6Pin , 90° angle , Through Hole, with shield
F002M8-SA06PS10-00
Front fastened M10X0.75 female Socket , A-Coded , 6Circuits , 180° Through Hole, with shield
F002M8-SA06PSD0-00
Front fastened M10X0.75 female Socket , A-Coded , 6Circuits , 180° Through Hole, without shield
F002M8-SA06PSP200-00
M8X1.0 Front fastened M10X0.75 female socket, A Coded 6pin, with lize L=200mm, free end
F004M8-SA06PSD0-00
Front fastened M12X1.0 female Socket , A-Coded , 6Circuits , 180° Through Hole, without shield
F004M8-SA06SSP200-00
M8X1.0 Front fastened M12X1.0 female socket, A Coded 6pin, with lize L=200mm, free end
F005M8-SA06PSP200-00
M8X1.0 Rear fastened M8X0.5 female socket, A Coded 6pin, with lize L=200mm, free end
F005M8-SA06SSP200-00
M8X1.0 Rear fastened M8X0.5 male socket, A Coded 6pin, with lize L=200mm, free end
F006M8-SA06PSP200-00
M8X1.0 Rear fastened M10X0.75 female socket, A Coded 6pin, with lize L=200mm, free end
F006M8-SA06SSP200-00
M8X1.0 Rear fastened M10X0.75 male socket, A Coded 6pin, with lize L=200mm, free end
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$7.934208
10
$7.282606
50
$6.631005
100
$6.094392
500
$5.481119
1000
$5.038824
5000
$4.750284
stock： 0 Estimated delivery date 2025-05-07
MPQ： 5
MOQ： 1
