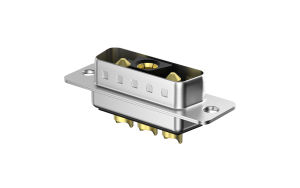

FDV0312-M0WS103K6KC

Download page

Power type D-sub 3Circuits(3V3), Male, 180° Vertical, 3μ"(30A)

Product Number：

FDV0312-M0WS103K6KC

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Mixed high current D-SUB V-series

Style

Plug

Gender

Male

Type

Type C

Row Option

Single row

Number of Positions

3Circuits

Contact Layout

3V3

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

30A

Voltage(Max)

300V

Contact Resistance

5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Soldering

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Assembly shell

D-SUB metal hood, Applies to 15 circuits and HD26 circuits

D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits

D-SUB hood, Metal, Applies to 15 circuits and HD26 circuits

D-SUB hood, Resin, Applies to 15 circuits and HD26 circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$3.225588

10+

$3.050404

50+

$2.700037

100+

$2.524853

500+

$2.174485

stock 18 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 70

MOQ： 560

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
