Where you are： TXGA → Products → D-Shaped Connector → FR-4AA-05A

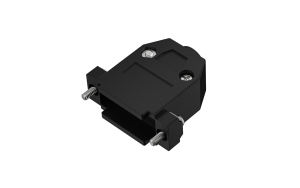

FR-4AA-05A
Download page
D-SUB plastic hood (Black)(Short bolt), Applies to 15 circuits and HD26 circuits
Product System：
D-Shaped Connector
Product Category：
Backshell
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FR-4AA-05A.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Backshell
Type
Type A
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Operating Temperature Range
-25ºC~+85ºC
Material
Flammability Rating
UL94 V-0
Material of Housing
Plastic
Packaging
Packaging
PE Bag
Compatible Parts
Plug
FDB1510-M0WS300K6KA
D-SUB Male 15Circuits(Black)
FDB1510-M0WS300K6KB
D-SUB Male 15Circuits(Black)
FDB1511-F0WS300K6KA
D-SUB Female 15Circuits Welding (Black)
FDB1511-F0WS300K6KB
D-SUB Female 15Circuits(Black)
FDB2604-M0WS300K6KA
D-SUB Male 26Circuits(Black)
FDB2604-M0WS300K6KB
D-SUB Male 26Circuits(Black)
FDB2606-F0WS300K6KA
D-SUB Female 26Circuits(Black)
FDB2606-F0WS300K6KB
D-SUB Female 26Circuits(Black)
FDB2606-F0WS300K6KB-02
D-SUB Female 26Circuits(Black)
FDM1503-F0WS100W1K
Machined pin D-SUB Female 15Circuits
FDM1503-F0WS101W1K
Machined pin D-SUB 15Circuits, Female, Welding, 1μ"
FDM1503-F0WS101W1K-B
Machined pin D-SUB 15Circuits, Female, Welding, 1μ"
FDM1503-F0WS103W1K
Machined pin D-SUB Female 15Circuits
FDM1503-M0WS100W1K
Machined pin D-SUB Male 15Circuits
FDM1503-M0WS101W1K
Machined pin D-SUB 15Circuits, Male, Welding, 1μ"
FDM1503-M0WS103W1K
Machined pin D-SUB Male 15Circuits
FDM2611-F0WS101K6K
Machined pin D-SUB Female 26Circuits
FDM2611-F0WS101W1K
Machined pin D-SUB Female 26Circuits
FDM2611-F0WS103K6K
Machined pin D-SUB Female 26Circuits
FDM2611-M0WS101K6K
Machined pin D-SUB Male 26Circuits
FDM2611-M0WS101W1K
Machined pin D-SUB Male 26Circuits
FDM2611-M0WS101W1KA
Machined pin D-SUB 26Circuits, Male, Welding, 1μ"
FDM2611-M0WS103K6K
Machined pin D-SUB Male 26Circuits
FDM2611-M0WS103W1K
Machined pin D-SUB 26Circuits, Male, Welding, 3μ"
FDV0312-F0WS103K6KA
Power type D-sub 3Circuits(3V3), Female, Welding, 3μ"(10A)
FDV0312-F0WS103K6KB
Power type D-sub 3Circuits(3V3), Female, Welding, 3μ"(20A)
FDV0312-F0WS103K6KC
Power type D-sub 3Circuits(3V3), Female, 180° Vertical, 3μ"
FDV0312-F0WS103K6KD
Power type D-sub 3Circuits(3V3), Female, Welding Type, 3μ"(40A)
FDV0312-F0WS115K6KB
Power type D-sub 3Circuits(3V3), Female, 180° Vertical, 15μ"(20A)
FDV0312-M0WS103K6KA
Power type D-sub 3Circuits(3V3), Male, Welding, 3μ"(10A)
FDV0312-M0WS103K6KB
Power type D-sub 3Circuits(3V3), Male, Welding, 3μ"(20A)
FDV0312-M0WS103K6KC
Power type D-sub 3Circuits(3V3), Male, 180° Vertical, 3μ"(30A)
FDV0312-M0WS103K6KD
Power type D-sub 3Circuits(3V3), Male, Welding Type, 3μ"(40A)
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.413530
10
$0.390012
50
$0.342977
100
$0.319459
500
$0.272424
1000
$0.212535
2500
$0.209613
5000
$0.206692
10000
$0.203770
25000
$0.200849
stock： 0 Estimated delivery date 2025-04-16
MPQ： 1
MOQ： 1000
