FR-1DB-15

Download page

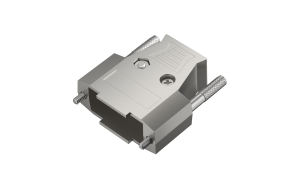

D-SUB Zinc Alloy Backshell , Applies to 15 circuits and HD26 circuits

Product Number：

FR-1DB-15

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Backshell

Number of Positions

15Circuits

Orientation

Vertical(180°)

Colour

Silver

Electrical

Operating Temperature Range

-40ºC~+105ºC

Material

Plating

Chrome plated

Material of Housing

Metal

Packaging

Packaging

PE Bag

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FDB1510-M0WS300K6KA

D-SUB Male 15Circuits(Black)

FDB1511-F0WS300K6KA

D-SUB Female 15Circuits Welding (Black)

FDB2604-M0WS300K6KA

D-SUB Male 26Circuits(Black)

FDB2606-F0WS300K6KA

D-SUB Female 26Circuits(Black)

FDM1503-F0WS100W1K

Machined pin D-SUB Female 15Circuits

FDM1503-F0WS101W1K

Machined pin D-SUB 15Circuits, Female, Welding, 1μ"

FDM1503-F0WS101W1K-B

Machined pin D-SUB 15Circuits, Female, Welding, 1μ"

FDM1503-F0WS103W1K

Machined pin D-SUB Female 15Circuits

FDM1503-M0WS100W1K

Machined pin D-SUB Male 15Circuits

FDM1503-M0WS101W1K

Machined pin D-SUB 15Circuits, Male, Welding, 1μ"

FDM1503-M0WS103W1K

Machined pin D-SUB Male 15Circuits

FDM2611-F0WS101K6K

Machined pin D-SUB Female 26Circuits

FDM2611-F0WS101W1K

Machined pin D-SUB Female 26Circuits

FDM2611-M0WS101W1K

Machined pin D-SUB Male 26Circuits

FDV0312-F0WS103K6KB

Power type D-sub 3Circuits(3V3), Female, Welding, 3μ"(20A)

FDV0312-F0WS103K6KC

Power type D-sub 3Circuits(3V3), Female, 180° Vertical, 3μ"

FDV0312-F0WS115K6KB

Power type D-sub 3Circuits(3V3), Female, 180° Vertical, 15μ"(20A)

FDV0312-M0WS103K6KB

Power type D-sub 3Circuits(3V3), Male, Welding, 3μ"(20A)

FDV0312-M0WS103K6KC

Power type D-sub 3Circuits(3V3), Male, 180° Vertical, 3μ"(30A)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.993145

10+

$1.883993

50+

$1.665689

100+

$1.556537

500+

$1.338233

stock 26 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1

MOQ： 200

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
