A USB connector [utility model] | TXGA patent

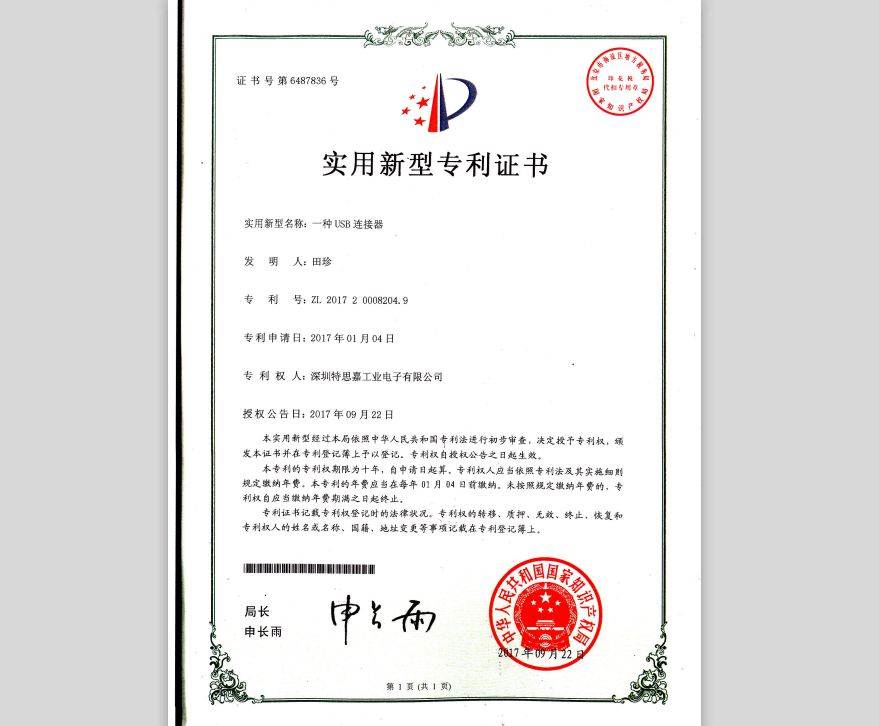

TXGA connector company received a patent for a USB connector.

Inventor: tian zhen

The patent number is ZL 2017 2 0008204.9

Patent application date: January 04, 2017

Patentee: shenzhen tesja industrial electronics co., LTD

Authorization announcement date: September 22, 2017

Abstract: the utility model discloses a USB connector, and the key point of the technical scheme is to include a shell and an insert component. The shell side is provided with an insert for the insert component. The insert component includes a socket and an insert piece, and the insert piece is inserted into the socket. Described shell corresponding to insert mouth on one side of the hinge bar, described shell on the other side to set a fixed block of the fixed parts, described in article pin plug surface, by setting the pin block, so when the shell is not inserted into the socket, to plug a dig out way is open mouth, will not stop the socket insert block, after insert the socket shell, through the article fold baffle and using fixed is fixed, and with the aid of block article can limit back to plug socket direction, in the actual use process will not appear in under the action of the USB plug plug socket part of the sliding out from the shell, Effectively increase the connection stability between the socket and the housing, keep the connector stable and normal work.

Principal right requirements: a USB connector, including shell and insert component, described in the shell side sets for insert component insert pins, insert components including socket and plug, as described in plug plug in the socket, whose character is: described shell corresponding to insert mouth on one side of the hinge bar, described in the shell side set a fixed block of the fixed parts, described in article pin plug surface.
