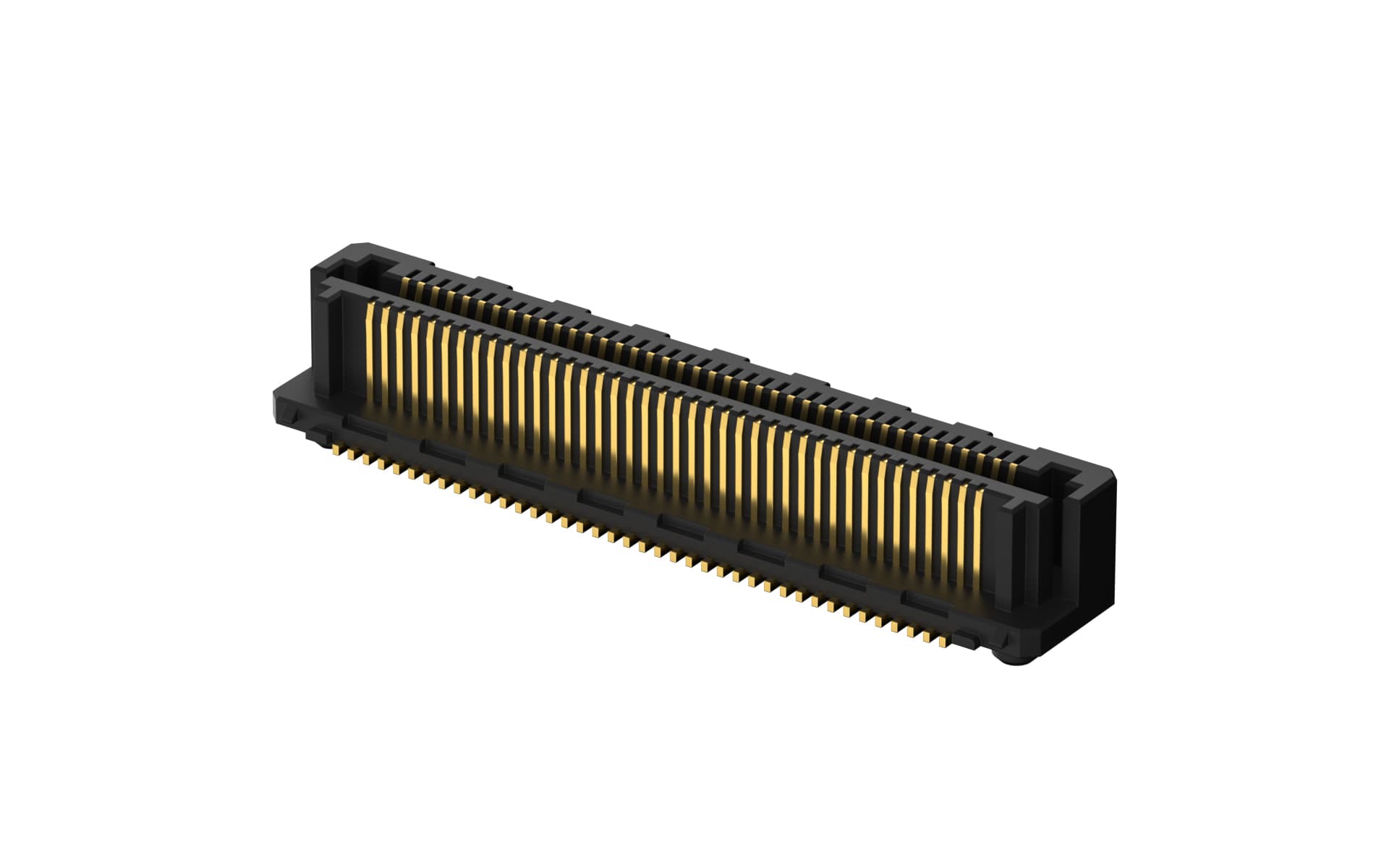

In the market, connectors come in multiple models and specifications, and the male and female sockets need to be used together, which can result in significant management costs for users in inventory management and retrieval processes. In response to this pain point, TXGA has launched its self-developed hermaphrodite board to board connector, which breaks the limitations of traditional male female socket plug-in connectors with its unique self plugging structure design. Users only need to manage the inventory of a single part number to meet their usage needs, thereby greatly improving management efficiency and reducing the risk of defective materials. TXGA's hermaphroditic board to board connectors provide users with efficient solutions.
Product Features
The product is equipped with guide groove structures on both sides, which can effectively prevent installation errors such as reverse insertion and empty insertion, and improve the convenience of use.
Gold plating treatment is applied to the contacts to enhance friction resistance, corrosion resistance, and prolong the product's service life.
The plug and unplug lifespan reaches 30 times, meeting the frequent plug and unplug requirements.
Supports working environments ranging from -55 º C to+125 º C, suitable for various harsh application environments.
There are multiple specifications and models available, including 40pin, 50pin, 80pin, 100pin with a pin spacing of 0.5mm, etc. Users can choose according to their specific needs.
performance parameter
Current - Maximum 2A
Voltage - Maximum 160V
Contact resistance 30 m Ω Max
Insulation resistance 1000 M Ω Min
At present, the androgynous board to board connectors developed and produced by TXGA have been widely used in industrial controllers, medical equipment, networks, automobiles, and other fields.
