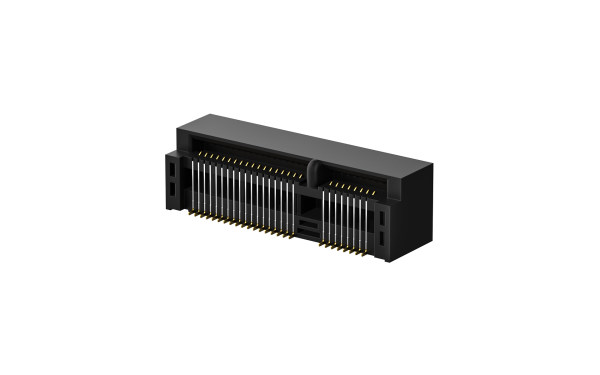

TXGA Mini PCIe connector, with multiple height options, creates a flexible and efficient solution for interconnecting information technology devices

Information technology equipment has high requirements for connectors. TXGA's Mini PCIe connector not only has a wide range of applications, convenient insertion methods, and stable transmission performance, but also can achieve a data transmission rate of 4Gb/s, enabling efficient and fast data exchange for devices,
Bringing users an unprecedented transmission experience.

1、 Product advantages
Diverse specifications: TXGA Mini PCIe connectors are available in various height options such as 4, 5.2, 5.6, 6.8, 7, 8, 9, 9.9mm, etc., to flexibly meet the connection needs of different devices.
Compact design: The compact exterior design makes it easier to integrate into small devices, not only maintaining efficient data transmission capabilities, but also effectively reducing power consumption and extending device lifespan.
Convenient insertion and removal: The product adopts a 25 ° inclined insertion design. Users only need to align the expansion card with the card slot and gently press down to complete the connection, ensuring stable transmission and convenient installation.
Wide communication protocol support: compatible with multiple communication protocols such as USB, SATA, PCI Express, etc., the Mini PCIe connector can connect various external devices and expansion cards, greatly improving the device's functional expandability.

2、 Product specifications
Center distance: 0.8mm
Number of digits: 52
Height (mm): 4, 5.2, 5.6, 6.8, 7, 8, 9, 9.9
Direction: Right angle (90 degrees)

3、 Application Fields
The TXGA Mini PCIe connector, with its excellent performance and flexible design, is widely used in mobile devices, wireless communication devices, servers, and solid-state drives, providing reliable and efficient connection solutions for various information technology devices.
